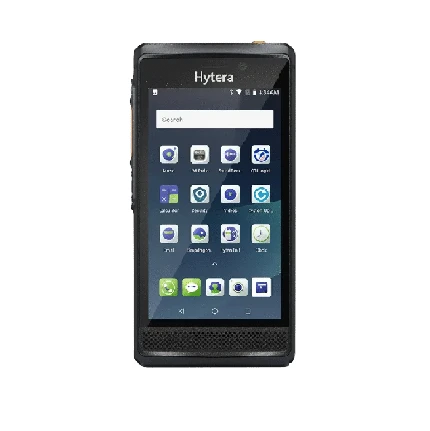

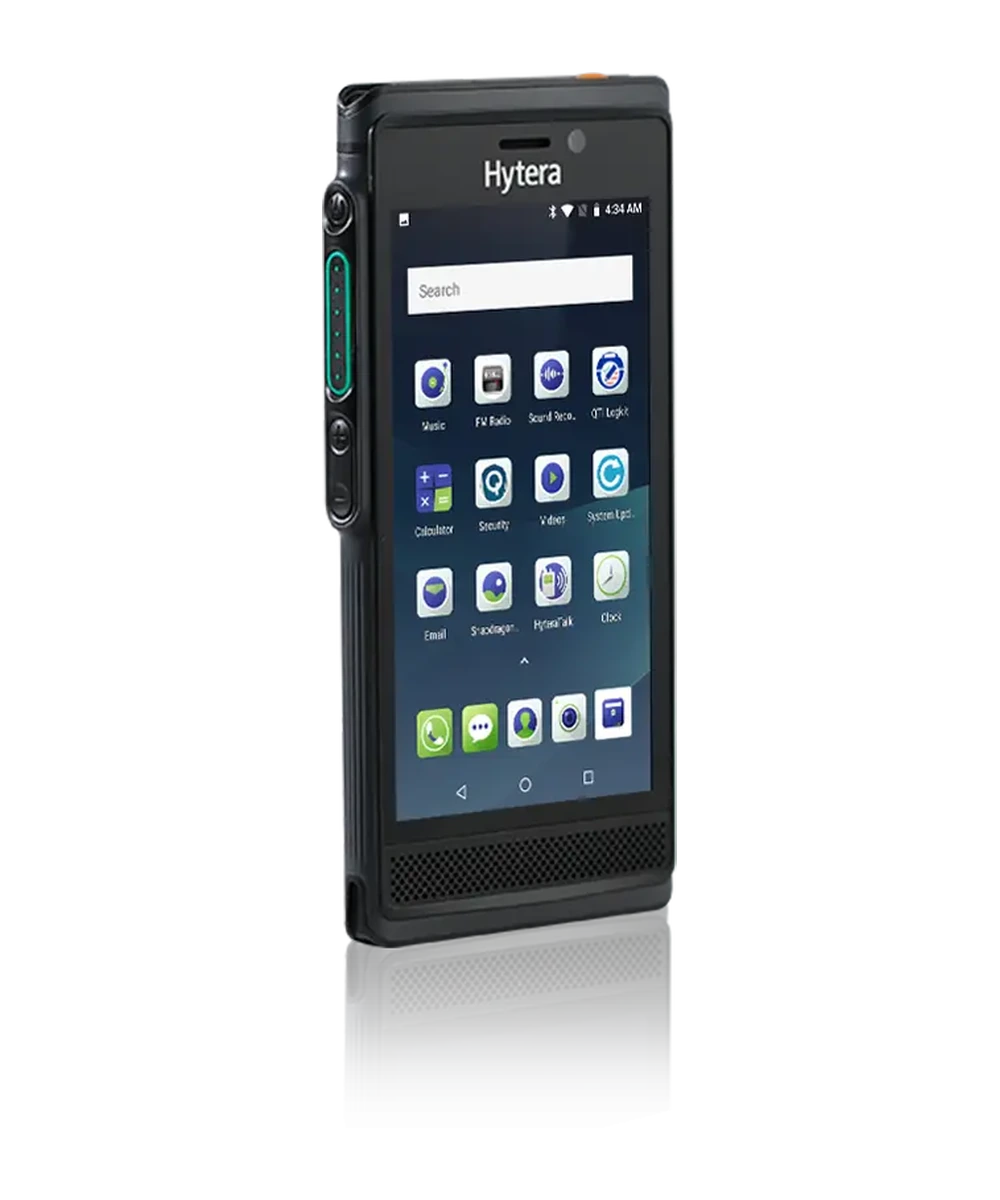

Hytera PNC550 PoC Radio
The Hytera PNC550 is a PoC radio for PTT voice and multimedia data over cellular or Wi-Fi networks. Communication availability depends on connectivity and the service configured in the scenario.
The manufacturer reports a 127 mm diagonal HD display, 13 MP rear camera, removable 4,000 mAh battery, and IP68 protection. The official Brazilian page publishes memory configurations of 3 GB + 32 GB or 4 GB + 64 GB, two Nano SIMs, and microSD expansion. ABC Mais Telecom evaluates the context before quoting.
4,000 mAh
Published battery.
IP68
Published protection.
127 mm diagonal
Published HD display.
< 250 g
Published weight.
OVERVIEW
Meet the Hytera PNC550 PoC Radio
The PNC550 combines a smart terminal form factor, PTT button, and data communication. Suitability depends on the networks and conditions present at the usage site.
- 127 mm diagonal HD display, 3 GB + 32 GB memory, and microSD up to 128 GB
- 13 MP and 8 MP cameras, 2.4 GHz Wi-Fi, NFC, and GPS
- BP4003 4,000 mAh battery, IP68, and PoC data communication
Display and platform
Features published by Hytera
- 127 mm diagonal HD display
- 3 GB + 32 GB or 4 GB + 64 GB
- Two Nano SIMs and microSD up to 128 GB
- 13 MP and 8 MP cameras
- 2.4 GHz Wi-Fi, Bluetooth and NFC
Battery and protection
Data published by Hytera
BP4003 battery of 4,000 mAh, IP68 and weight under 250 g.
• Noise-reduction audio
• MIL-STD-810G
• Drops of up to 1.2 m
Confirmed features of the PNC550
The manufacturer reports a 127 mm diagonal HD display, memory configurations of 3 GB + 32 GB or 4 GB + 64 GB, two Nano SIMs, microSD up to 128 GB, 13 MP rear camera, 8 MP front camera, 4,000 mAh battery, and IP68 protection.
PoC communication with technical evaluation
- 127 mm diagonal HD display, 3 GB + 32 GB memory and microSD up to 128 GB
- 13 MP and 8 MP cameras, 2.4 GHz Wi-Fi, NFC and GPS
- BP4003 4,000 mAh battery, IP68 and PoC data communication
Support to size the solution
Before the quote, ABC Mais Telecom can understand the number of users, places of use, available connectivity and the operation routine.
Connectivity scenario
A PoC solution depends on compatible data connectivity. This check must occur before defining the team configuration.
Groups and operation
The organization of groups must follow the operational routine informed in the quote.
Specialized technical service
ABC Mais Telecom provides specialized technical service in radiocommunication and guides the equipment evaluation according to the technical diagnosis.
Data for the quote
Inform scenario, approximate quantity, cities of use and connectivity requirements. These data make the commercial conversation more objective.
Accessories by code
BP4003, CH20L14 and POA121 are presented with manufacturer code, documented compatibility and their own data sheet.
Technical quote
Request a quote so that the commercial team evaluates the scenario and the appropriate conditions for your use.
Technical specifications
Technical data of the Hytera PNC550 PoC Radio according to official manufacturer pages and data sheet.
IP68
Published protection.
4,000 mAh
Published battery.
GPS and NFC
Published features.
Up to 3 W
Published audio.
Detailed data sheet
| Category | PoC radio for PTT voice and multimedia data |
|---|---|
| Display | HD 127 mm diagonal, 1280 × 720 pixels |
| Memory | 3 GB RAM + 32 GB ROM or 4 GB RAM + 64 GB ROM; microSD up to 128 GB |
| Cards | Two Nano SIM and one microSD card |
| Cameras | Rear 13 MP and front 8 MP |
| Wi-Fi | 2.4 GHz, 802.11 b/g/n |
| Features | Bluetooth, NFC and positioning by GPS, A-GPS, BeiDou, GLONASS, Galileo and network |
| Battery | Removable BP4003, 4,000 mAh |
| Audio | 2 W, maximum 3 W; noise reduction |
| Protection | IP68 |
| Resistance | MIL-STD-810G; drop up to 1.2 m |
| Dimensions | 156.5 × 76 × 14 mm |
| Weight | Less than 250 g |
Features explained
The items below reproduce features published by Hytera. Suitability for the environment and networks must be verified in the commercial project.
PTT over data network
As a PoC radio, the PNC550 uses data connectivity for push-to-talk communication. Availability depends on compatible network and service.
Display, memory and cameras
The PNC550 has an HD display of 127 mm diagonal, 1280 × 720 pixels, memory of 3 GB + 32 GB or 4 GB + 64 GB, two Nano SIM, expansion via microSD up to 128 GB and cameras of 13 MP and 8 MP.
Wi-Fi, NFC and positioning
The manufacturer reports Wi-Fi 2.4 GHz 802.11 b/g/n, NFC and GPS. The Bluetooth version is not published here because the official sources consulted differ.
Battery and audio
The removable BP4003 battery has 4,000 mAh. The manufacturer reports audio with noise reduction and a 2 W speaker, maximum 3 W.
Protection and resistance
Hytera reports IP68, MIL-STD-810G and drop resistance up to 1.2 m for the PNC550.
Dimensions and weight
The published dimensions are 156.5 × 76 × 14 mm, with weight under 250 g.
Technical consultation
If there is any doubt about networks, accessories or intended use, send the context so the commercial team can assess the appropriate configuration.
Manufacturer source
The specifications on this page were checked against official PNC550 sources from Hytera.
Applications to evaluate
The PNC550 can be evaluated for remote teams and operations that depend on PTT voice and multimedia data. The indication requires checking available connectivity and work routine.
Manufacturer source
The specifications on this page were checked against official PNC550 sources from Hytera.
Communication oriented to the usage scenario
Airports, logistics and field operations may have different needs. ABC Mais Telecom assesses the context before suggesting a configuration.
Points for the commercial conversation
Logistics, private security, field services and events may have different needs. ABC Mais Telecom assesses the context before suggesting a configuration.
Points for the commercial conversation
Number of users
The approximate number helps organize groups, additional battery and quote processing.
Work environment
IP68, published resistance, dimensions and weight are points that can be compared with the actual environment.
Replacement battery
Code BP4003. Removable 4,000 mAh battery for PNC550.
Validation before the proposal
A short conversation about scenario, connectivity and battery prevents the proposal from being based only on a generic data sheet.
Selection criteria
Data network, groups, environment and equipment configuration must be evaluated for each operation.
PNC550 quote
Data network, plan, groups, environment and equipment configuration must be evaluated for each operation.
PNC550 quote
Model features
Screen, memory, positioning, battery, protection and audio features must be compared with the actual demand.
Battery confirmed
BP4003, CH20L14 and POA121 are listed on the official PNC550 data sheet. Each item is presented with its code and own data sheet.
Compatible battery
Compatibility is a documented fact; availability and equivalent alternative are confirmed in the quote.
Compatible accessories by code
Three items appear below because the official PNC550 document lists the codes and each photo was checked in Hytera’s official media.

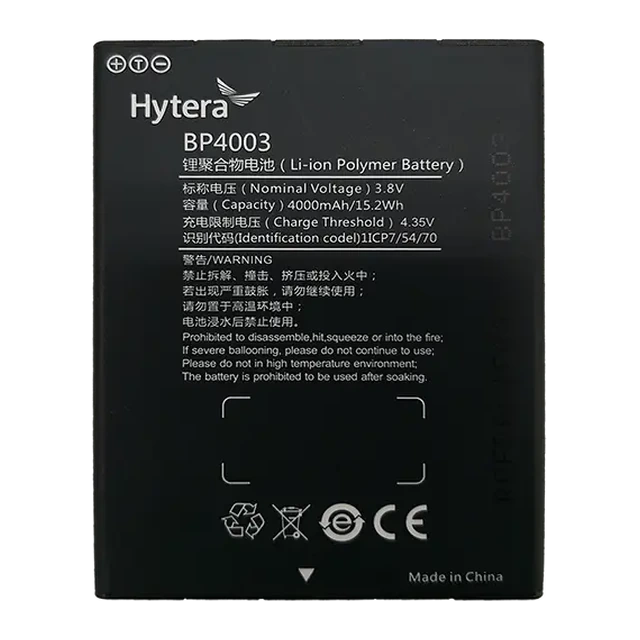

4,000 mAh Li-poly battery
Removable battery specific to PNC550. Does not inherit the terminal’s IP protection when installed alone. Code BP4003.

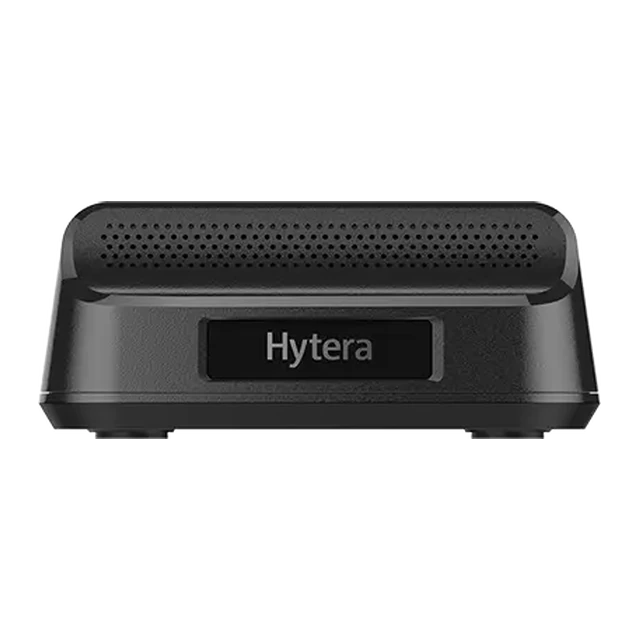

Two-position charging base
Base for the PNC550 with two separate compartments, allowing you to charge the radio and a battery simultaneously. The data sheet describes support for Li-ion and Li-polymer batteries; it is not a base for two complete terminals. Code CH20L14.
Wireless PTT
Wireless PTT (POA121). Button to command transmission remotely; it does not constitute a headset or microphone. Code POA121.
Code and compatibility must be confirmed for the quoted version.
Request a quote
Fill in the fields to receive a technical quote, with price on request and guidance on the usage scenario.
Loading accessories…
Response by email and WhatsApp. No obligation · price on request. We also rent: in rentals, Anatel frequency licensing is already included by ABC Mais Telecom.
Frequently asked questions
What is the Hytera PNC550?
It is a Hytera PoC radio for PTT voice and multimedia data over cellular or Wi-Fi networks. Suitability depends on available connectivity.
What is the PNC550's screen?
The manufacturer publishes a 127 mm diagonal HD screen, with 1280 × 720 pixels.
What memory is published?
The official Brazilian page publishes two configurations: 3 GB RAM + 32 GB ROM or 4 GB RAM + 64 GB ROM, plus expansion via microSD up to 128 GB.
What cameras does the PNC550 have?
The manufacturer reports a 13 MP rear camera and an 8 MP front camera.
What is the published battery?
The removable BP4003 battery has 4,000 mAh. Battery life depends on the scenario; test results are not a promise on this page.
How is the PNC550's protection?
The manufacturer states IP68, MIL-STD-810G and drop resistance up to 1.2 m.
Does the PNC550 have Bluetooth?
The official sources consulted differ on the Bluetooth version. Therefore, the page does not publish a specific version.
Which accessories appear on this page?
The official PNC550 data sheet lists the BP4003 battery, the CH20L14 charger and the POA121 Bluetooth PTT ring. Availability must be confirmed in the quote.
