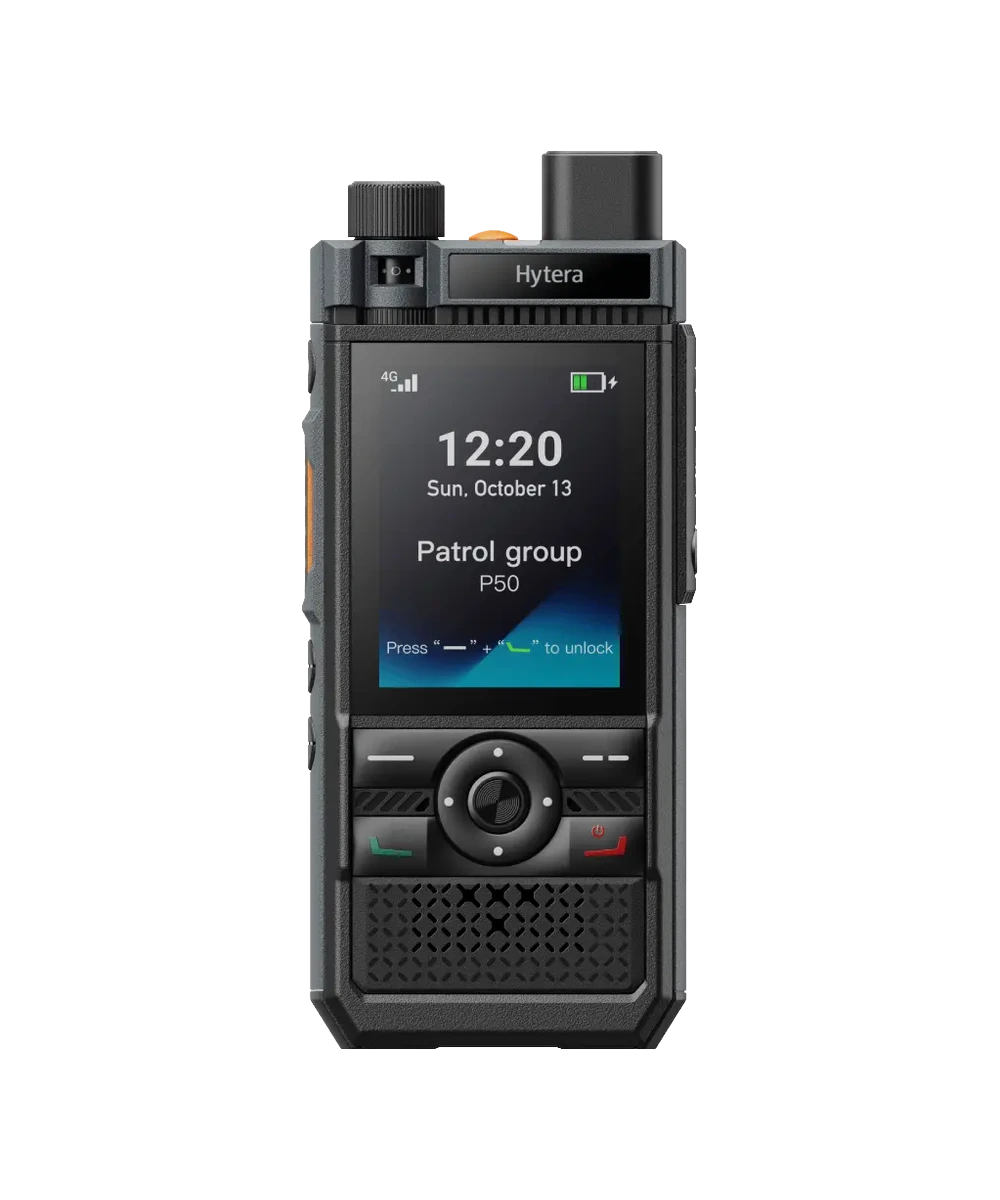

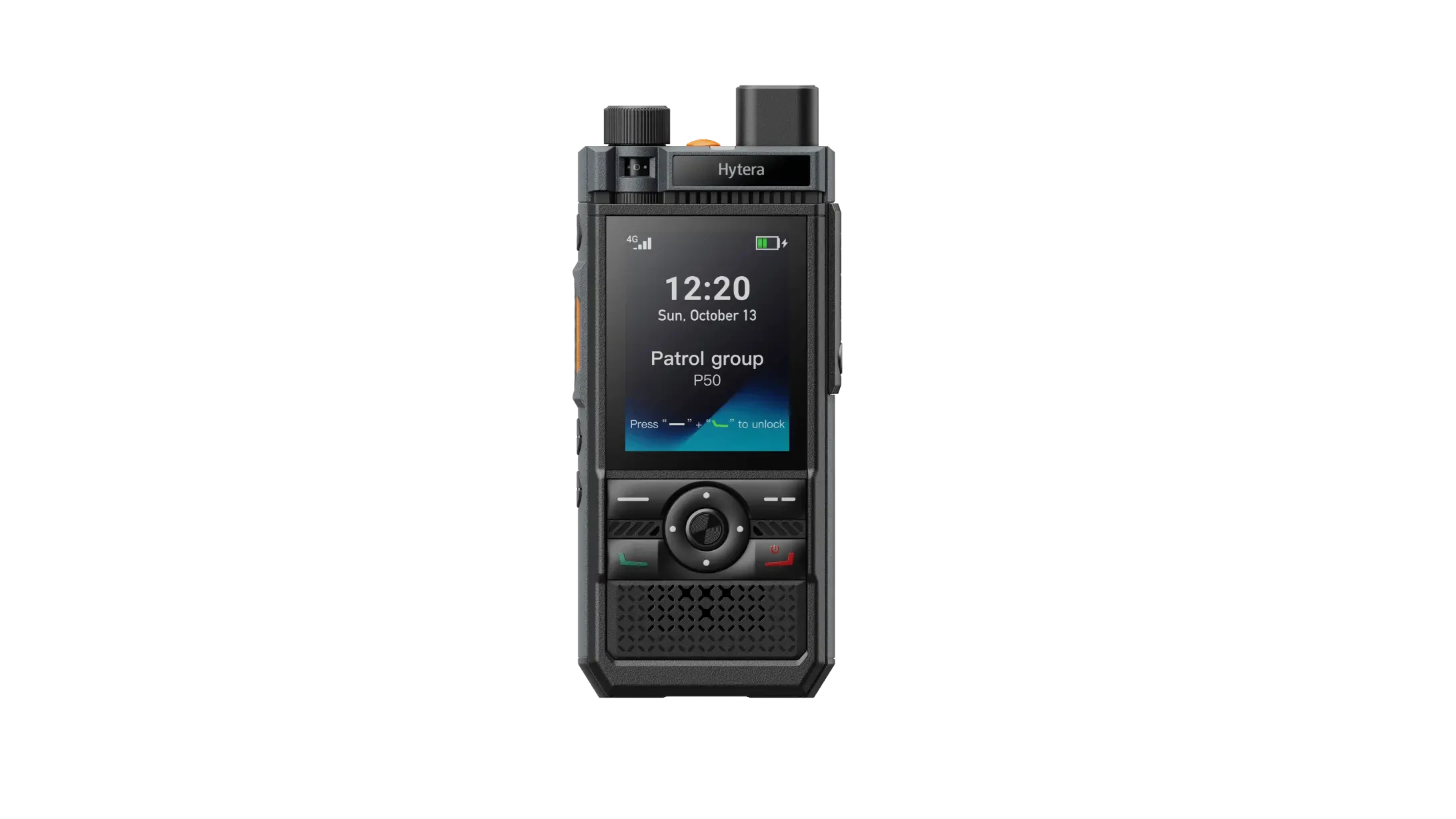

Hytera P50 PoC Radio
The Hytera P50 is a PoC radio with a professional form factor for push-to-talk communication over data. Availability depends on connectivity and the service configured in the scenario.
The manufacturer states Android 12, a 61 mm diagonal color screen, 1 GB + 8 GB memory, a 4,000 mAh battery, IP68, and audio up to 3 W.
4,000 mAh
Published battery.
IP68
Published protection.
61 mm diagonal
Published screen.
190 g
Published weight.
OVERVIEW
Meet the Hytera P50 PoC Radio
The P50 combines a radio form factor, PTT button, and data connectivity. Suitability depends on the networks and conditions present at the usage site.
- Android 12, 61 mm diagonal screen, and 1 GB + 8 GB memory
- Wi-Fi on 2.4 and 5 GHz and published positioning
- BP4012 4,000 mAh battery, IP68, and PTT over data
Display and connectivity
Features published by Hytera
Android 12, 61 mm diagonal display and 1 GB + 8 GB memory.
• Wi-Fi at 2.4 and 5 GHz
• GPS, BDS, GLONASS and Galileo
• PTT button and group selector
Battery and protection
Data published by Hytera
BP4012 battery of 4,000 mAh, IP68 and 190 g.
• Speaker up to 3 W
• MIL-STD-810H
• Drops of up to 1.5 m
Confirmed features of the P50
The manufacturer states Android 12, 61 mm diagonal screen, 1 GB + 8 GB memory, 4,000 mAh battery, IP68, and positioning.
PoC communication with technical evaluation
- Android 12, 61 mm diagonal screen, and 1 GB + 8 GB memory
- Wi-Fi on 2.4 and 5 GHz and published positioning
- BP4012 4,000 mAh battery, IP68, and PTT over data
Support to size the solution
Before quoting, ABC Mais Telecom can understand the number of users, usage locations, available connectivity, and the operation’s routine.
Connectivity scenario
A PoC solution depends on compatible data connectivity. This verification must occur before defining the team configuration.
Groups and operation
The organization of groups must follow the operational routine informed in the quote.
Specialized technical service
ABC Mais Telecom provides specialized technical service in radiocommunication and guides the equipment evaluation according to the technical diagnosis.
Data for the quote
Inform scenario, approximate quantity, cities of use and connectivity requirements. These data make the commercial conversation more objective.
Interfaces and accessories
The P50 has a professional 9-pin audio connector and USB Type-C port. The selection of the peripheral must follow the quoted configuration.
Technical quote
Request a quote so that the commercial team evaluates the scenario and the appropriate conditions for your use.
How to specify the P50
The P50 is a portable PoC terminal. Voice transmission uses a data network and a push-to-talk platform configured for the team. Therefore, performance should not be described by a fixed distance. Carrier coverage, Wi-Fi, signal quality, plan capacity, and service availability affect communication. Before quoting, inform the locations of use, number of users, required groups, and available networks.
P50 hardware and interface
Hytera publishes Android 12, 1 GB of RAM, and 8 GB of storage. The color LCD screen has a 61 mm diagonal and resolution of 320 by 240 pixels. The body measures 131 by 61 by 23.5 mm and weighs 190 g. There is a Nano SIM slot, a TF card slot, a 9-pin audio connector, and a USB Type-C port. The P50 combines a PTT button and group selector with a simple visual interface.
Connectivity and positioning
The manufacturer publishes regional variants with different sets of LTE and WCDMA bands. The page also reports GSM at 850, 900, 1800, and 1900 MHz, as well as Wi-Fi at 2.4 and 5 GHz. The variant must be confirmed before ordering. Positioning can combine GPS, BDS, GLONASS, and Galileo, with BDS optional according to the current data sheet. Availability of map, history, and dispatch functions depends on the platform integrated with the P50.
Audio, power, and resistance
Audio output is 2 W nominal and 3 W maximum. The published battery is 4,000 mAh. Since actual time varies with network, brightness, volume, temperature, and usage pattern, battery life should be evaluated under operating conditions. The P50 has IP68 protection, declared resistance to drops from 1.5 m, and operation from minus 20 to plus 60 degrees Celsius. The data sheet also reports electrostatic discharge tests according to IEC 61000-4-2.
Checklist for quotation
- Confirm the regional variant and available networks at each location.
- Define PoC platform, data plan, users, and talk groups.
- Check need for positioning, dispatch, and remote administration.
- Evaluate volume, noise, shift, and recharging routine.
- Confirm interfaces and peripherals compatible with the quoted unit.
This survey avoids promising range independent of the network or attributing to the equipment functions that belong to the PoC service. The P50 page presents only data published by the manufacturer and keeps capabilities that depend on infrastructure, license, or platform conditional.
Technical specifications
Technical data of the Hytera P50 PoC Radio according to official manufacturer sources.
IP68
Published protection.
4,000 mAh
Published battery.
GPS and Wi-Fi
Published features.
Up to 3 W
Published audio.
Detailed data sheet
| Category | PoC radio for push-to-talk communication over data |
| System | Android 12 |
| Screen | 61 mm diagonal, 320 × 240 pixels |
| Memory | 1 GB RAM and 8 GB ROM |
| Wi-Fi | 2.4 and 5 GHz |
| Positioning | GPS, BDS, GLONASS and Galileo |
| Battery | BP4012, 4,000 mAh |
| Audio | 2 W, maximum 3 W |
| Protection | IP68 |
| Resistance | MIL-STD-810H; drop up to 1.5 m |
| Dimensions | 131 × 61 × 23.5 mm |
| Weight | 190 g |
Explained features
The items below reproduce features published by Hytera. Suitability for the environment and networks must be verified in the commercial project.
PTT over data
The P50 uses data connectivity for push-to-talk communication. Availability depends on compatible network and service.
Screen and memory
The P50 has a 61 mm diagonal color screen, with 320 × 240 pixels, and memory of 1 GB RAM + 8 GB ROM.
Wi-Fi and positioning
The manufacturer reports Wi-Fi on 2.4 and 5 GHz and positioning via GPS, BDS, GLONASS and Galileo.
Battery and audio
The BP4012 battery has 4,000 mAh. The manufacturer reports a 2 W speaker, maximum 3 W.
Protection and resistance
Hytera reports IP68, MIL-STD-810H and drop up to 1.5 m for the P50.
Dimensions and weight
The published dimensions are 131 × 61 × 23.5 mm. The published weight is 190 g.
Technical consultation
Provide available network, number of users, environment, and PoC platform for a coherent evaluation of the configuration.
Manufacturer source
The specifications on this page were checked against official sources for the P50, from Hytera.
Applications to evaluate
The P50 can be evaluated in operations that depend on data communication. The indication requires verifying connectivity, number of users, and work routine.
Manufacturer source
The specifications on this page were checked against official sources for the P50, from Hytera.
Communication oriented to the usage scenario
ABC Mais Telecom assesses context, connectivity, and number of users before suggesting a configuration.
Points for the commercial conversation
Logistics, private security, field services, and events may have different needs. ABC Mais Telecom assesses the context before suggesting a configuration.
Points for the commercial conversation
Number of users
The approximate number helps organize groups, additional battery, and the routing of the quote.
Work environment
IP68, dimensions, weight, and battery are points that can be compared with the actual environment.
Audio and USB connection
The 9-pin audio connector uses threaded fastening, while the USB Type-C port has water-resistant construction.
Validation before the proposal
A short conversation about scenario, connectivity, and battery prevents the proposal from being based only on a generic data sheet.
Selection criteria
Data network, groups, environment and equipment configuration must be evaluated for each operation.
P50 quote
Data network, plan, groups, environment and equipment configuration must be evaluated for each operation.
P50 quote
Model features
Screen, memory, positioning, battery, protection and audio features must be compared with the actual demand.
Network and regional variant
The suitability of the P50 depends on the network, the PoC service and the selected regional variant.
P50 configuration
The page presents only the equipment and features published in the current official source.
Compatible accessories
Check the details of each accessory to confirm its function and usage conditions with this equipment.
4,000 mAh Li-poly Battery
Removable battery for shift rotation. Battery life depends on network, transmission, and enabled features. Code BP4012.
Two-position charger
Base for one radio and one battery. Does not include adapter; the recommended power source must be confirmed according to the regional lot. Code CH20L27.
Check the details of each accessory to confirm its function and usage conditions with this equipment.
Request a quote
Fill in the fields to receive a technical quote, with price on request and guidance on the usage scenario.
Loading accessories…
Response by email and WhatsApp. No obligation · price on request. We also rent: in rentals, Anatel frequency licensing is already included by ABC Mais Telecom.
Frequently asked questions
What is the Hytera P50?
The P50 is a PoC terminal: PTT voice uses a data network and a compatible platform. Coverage, plan, and service need to be evaluated in the project.
What is the P50's screen?
The P50 has a 2.4-inch LCD screen, 320 × 240 pixel resolution. It is not an FHD+ screen.
What is the published system?
The official source states Android 12.
What is the published battery?
The manufacturer states a 4,000 mAh battery. Usage time depends on the scenario and is not published as a promise.
How is the P50's protection?
The Brazilian page lists IP68 and 1.5 m drop resistance under the manufacturer’s conditions. The housing, connectors and battery must still remain intact.
How does communication work?
Communication depends on data coverage, the PoC platform and the contracted configuration. The presence of LTE and Wi-Fi does not guarantee operation in all locations.
What interfaces does the P50 offer?
The P50 has a 9-pin accessory port and USB Type-C. Headsets, chargers and other accessories must be selected based on documented compatibility with the model.
Which accessory appears on this page?
Check the P50 configuration according to the network and PoC platform adopted.
