Two-way Radio Hytera PD416
Two-way Radio Hytera PD416: DMR portable radio with integrated RFID reader for guard tour control, digital and analog, 48 channels, 3 zones, loud and clear audio and IP54 ruggedness. Integrates with Hytera Patrol System.
The PD416 is Hytera’s PD41X series DMR radio with built-in RFID reader: reads RFID tags and sends the information to Hytera Patrol System, ideal for rounds and patrol management. Simple operation (no display), 48 channels, 3 zones, loud and clear audio, IP54 and up to 22 h of battery life in digital mode.
Integrated RFID reader
Reads RFID tags and sends to Hytera Patrol System, guard tour control.
Rugged IP54
Protected against dust and water splashes, for everyday use.
Loud and clear audio
Loud and clear audio, even in noisy environments.
Long-lasting battery
Up to 22 h with BL2010, in 5/5/90 cycle.
OVERVIEW
Meet the Two-way Radio Hytera PD416
The Two-way Radio Hytera PD416 is a DMR portable radio (digital and analog) from the PD4 series, with integrated RFID reader for guard tour control. Direct and rugged operation (IP54), with loud and clear audio and long-lasting battery.
- Digital and analog DMR radio
- VHF 136 to 174 MHz and UHF 400 to 470 MHz
- 48 channels and 3 zones
- No display, direct channel operation
RFID Reader
With RFID reader for patrol control
The RFID reader records passage through patrol points. Sending the records to the Hytera Patrol System depends on compatible software, RFID points, network and configuration.
• Integrated RFID reader
• Passage logging, not continuous GPS
• System components defined in the project
Durability and Audio
Built for everyday business use
IP54 protection against dust and splashes, weighing approximately 270 g.
• BL1504: up to 16 h in digital
• BL2010: up to 22 h in digital
• Battery life on the 5/5/90 cycle at high power
• Observe the battery's thermal limits
Why choose the PD416?
The PD416 delivers digital and analog DMR communication with integrated RFID reader. For ABC Mais Telecom, it is the right choice for companies that want to migrate to digital without complexity.
The entry-level DMR radio of the PD4 series
- Entry-level DMR radio (digital + analog)
- IP54 robustness
- 48 channels and 3 zones
- Loud and clear audio in noisy environments
Why buy from ABC Mais Telecom
Programming and service
Fleet configuration
Specialized technical service
Specialized technical service and maintenance conducted by a team specialized in radio communication, with close service in the ABC Paulista.
Regulatory guidance
After-sales support
Service for the PD416
Technical Specifications
Technical data of the Hytera PD416 according to the official Hytera Brazil page and the PD4 series catalog.
DMR
Digital + analog
IP54
Dust and splashes
48 channels
3 zones
DMR
ETSI standard
Detailed data sheet
| Type | DMR digital business portable radio (digital + analog) |
| Bands | VHF 136 to 174 MHz / UHF 400 to 470 MHz |
| Channels | 48 |
| Zones | 3 |
| RFID reader | integrated (patrol control / Hytera Patrol System) |
| Display | has no display, direct channel operation |
| Audio | nominal output power 0.5 W |
| Battery | standard BL1504 Li-Ion 1500 mAh; optional BL2010 Li-Ion 2000 mAh |
| Operating voltage | 7.4 V |
| Battery life (BL1504 1500 mAh) | 12 h analog and 16 h digital (5/5/90 cycle) |
| Battery life (BL2010 2000 mAh) | 16 h analog and 22 h digital (5/5/90 cycle) |
| Protection | IP54 (dust and water splashes) |
| Military standard | MIL-STD-810G |
| Operating temperature | Radio: −30 °C to +60 °C. Batteries BL1504/BL2010: −20 °C to +60 °C discharging; charging 0 °C to +45 °C. |
| Storage temperature | Radio: −40 °C to +85 °C. Batteries have their own storage limits, depending on the period. |
| Dimensions | 112 × 55 × 31 mm (H × W × D) |
| Weight | 270 g |
Features explained
Every feature of the PD416 has a practical effect on your team’s daily routine. See what each characteristic delivers.
DMR digital + analog
IP54 ruggedness
IP54 ruggedness (dust and splashes), for daily use in work environments.
48 channels and 3 zones
48 channels and 3 zones, enough to organize teams and shifts with simplicity.
Loud and clear audio
Loud and clear audio that processes sound for greater clarity in noisy environments.
Simple operation, no display
Simple and direct operation, no display: turn on, select the channel, and talk, ideal for teams that need practicality.
Long-lasting BL1504 battery
Connectivity and features
Digital DMR and analog FM two-way radio in VHF (136-174 MHz) and UHF (400-470 MHz), with 48 channels and 3 zones.
Audio and productivity
Practical features: DMR (digital and analog), loud and clear audio with nominal power of 0.5 W.
Certified durability
Durable construction with IP54 protection, designed for continuous use in the work environment.
Technical documents
Consult the official Hytera PD416 documentation (PD4 series) with ABC Mais Telecom.
Applications
The Hytera PD416 Two-Way Radio serves companies that need simple, rugged, and low-cost communication.
A simple and rugged DMR radio for work
From retail to light industry, the PD416 delivers entry-level DMR radio, clear digital audio, and IP54 ruggedness.
Segments served
Retail and shopping malls
Retail and services: simple and lightweight radio for teams in contact with customers.
Hospitality and events
Hospitality and events: direct and discreet operation, with clear audio.
Construction and industry
Construction and light industry: IP54 ruggedness for dusty environments.
Logistics and warehouses
Logistics and warehouses: reliable DMR communication for teams.
Property security
Property security and facilities: entry-level DMR with clear digital audio.
Customer service teams
Customer service teams: clear audio with noise reduction in busy environments.
Use scenarios
Facilities and services
Facilities and services with simple and reliable DMR communication.
Clear audio in noisy environments
Loud and clear audio, even in noisy environments.
Extended coverage
Practical communication, with long-lasting BL1504 battery.
Compatible accessories
1,500 mAh Li-ion battery
Energy reserve for shift rotation. Nominal capacity does not represent fixed hours of operation. Code BL1504.
Individual charging base
Desktop base to organize fleet recharging. Power supply and plug must accompany the approved regional configuration. Code CH10A07.
Multi-unit charger
Centralizes recharging of several compatible devices. Validate power supply, batteries, and number of positions in the commercial configuration. Code MCA08.
Remote speaker microphone
External PTT and speaker to operate the radio without removing it from the belt; additional output for discreet audio. Code SM26M1.
Belt clip
Attachment to carry the radio on the belt and keep the equipment accessible during work. Code BC08.
Nylon hand strap
Wrist retention during movement. It is not a safety lanyard against falls from height nor does it replace proper radio attachment. Code RO03.

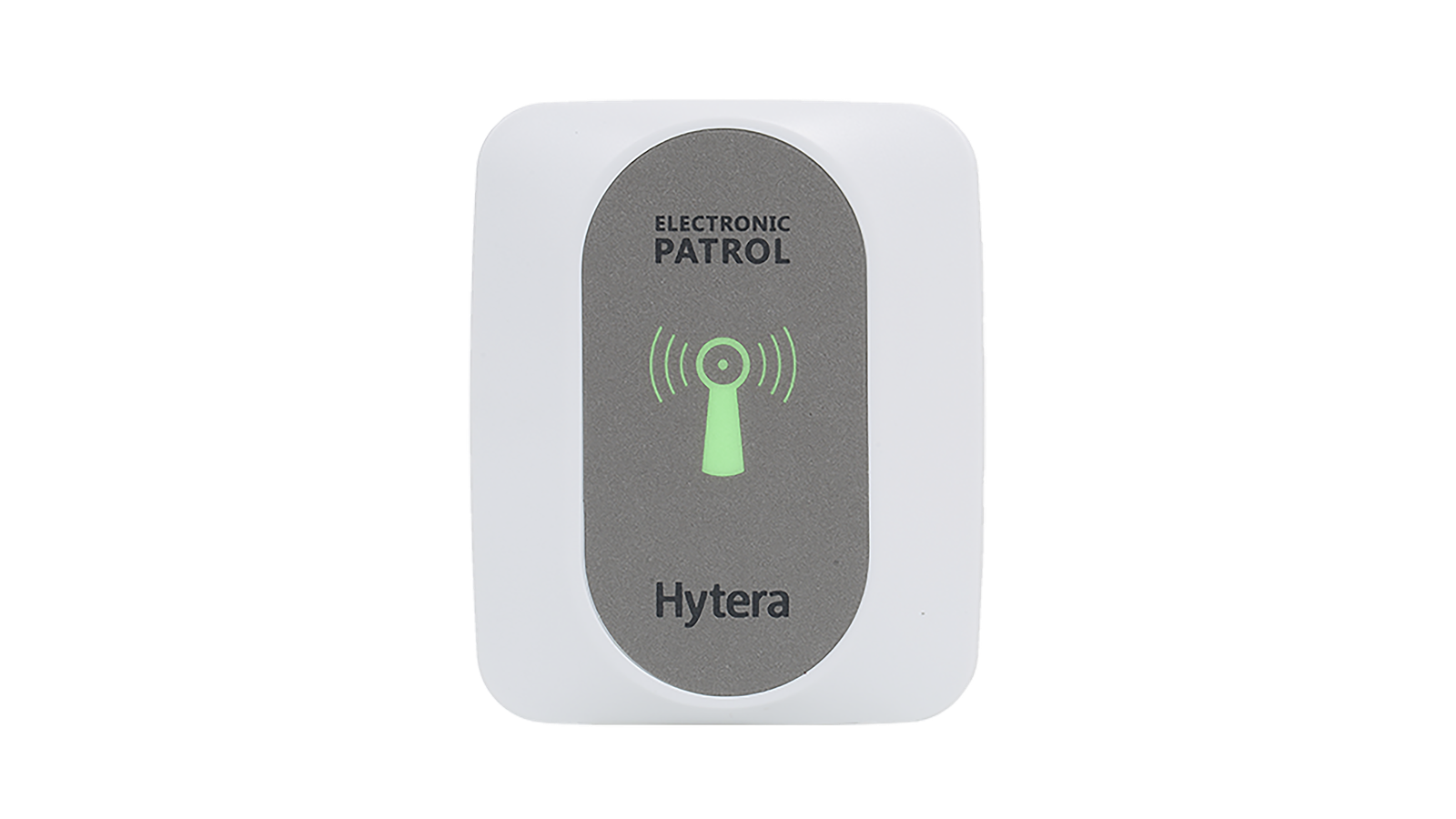

RFID patrol point
Physical patrol point listed for PD416; integrates patrol operation with compatible configuration and system. Code POA71.

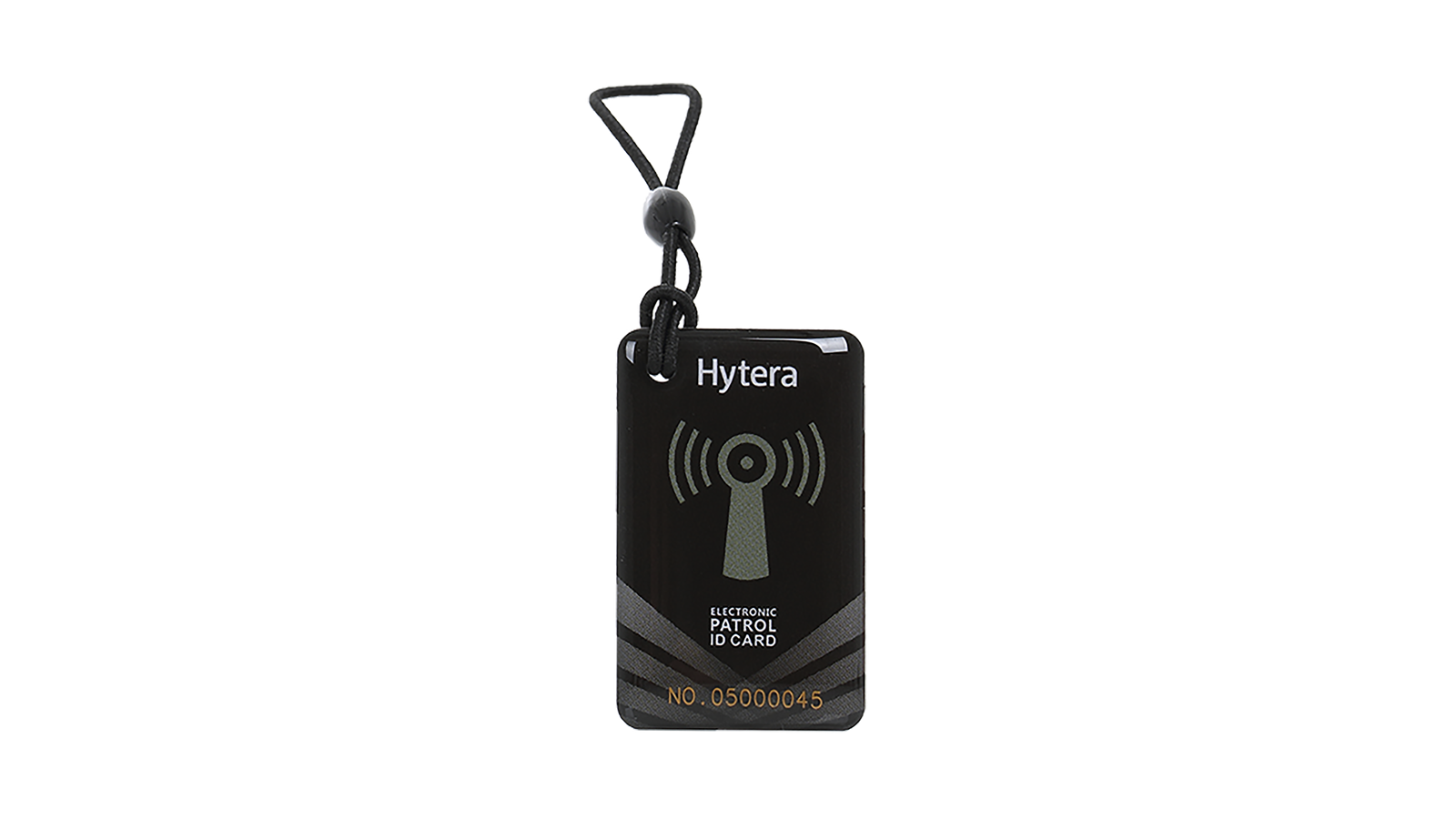

Patrol identification card
Identifier listed for PD416; requires patrol flow configuration and does not constitute a management platform by itself. Code POA72.
Official images of the respective Hytera codes. Confirm the configuration available in the order.
Request a quote
Fill in the fields below. ABC replies by email and WhatsApp with pricing on request, lead time and advice for your case. No commitment.
Loading accessories…
Response by email and WhatsApp. No obligation · price on request. We also rent: in rentals, Anatel frequency licensing is already included by ABC Mais Telecom.
Frequently asked questions
Does the PD416 have an RFID reader?
How many channels does the PD416 have?
It has 48 channels and 3 zones, enough to organize teams and shifts.
In which frequency bands does the PD416 operate?
The PD416 operates in VHF (136-174 MHz) and UHF (400-470 MHz).
What is the battery life of the PD416?
Up to 12 h in analog and 16 h in digital with the BL1504 battery (1500 mAh), 5-5-90 cycle.
Is the PD416 resistant to water and dust?
Yes. The PD416 has IP54 protection (dust and water splashes), suitable for daily use.
Does the PD416 have a display?
The PD416 is an entry-level model, without a display: operation is direct on the channel, which simplifies use by the team.
How is the audio of the PD416?
The nominal speaker power is 0.5 W.
Does the PD416 have a warranty?
How is the PD416 charged?
Charging is done via an individual desktop charger (cradle) from the PD4 series.
