Two-way Radio Hytera PD366
Entry-level DMR
Digital and analog, 256 channels.
Rugged IP54
Against dust and water splashes.
Clear digital audio
Built-in noise suppression.
Long-lasting battery
BL2009 2000 mAh battery.
OVERVIEW

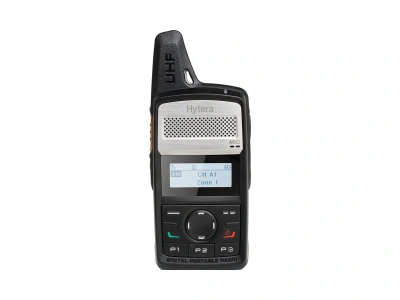

Meet the Two-way Radio Hytera PD366
The Hytera PD366 combines digital DMR and analog modes in the same terminal. This allows a gradual migration from analog to digital groups, provided that frequencies, channels and parameters are programmed for the existing network. Official capacity is 256 channels distributed across 16 zones. The manufacturer also specifies noise-suppression technology, an integrated speaker and a monochrome LCD display. PD366 applications should be planned for the published UHF band, from 430 to 470 MHz, and the project’s regulatory conditions.
- DMR digital and analog radio
- UHF 430 to 470 MHz
- 256 channels and 16 zones
- Monochrome LCD display (B&W) with keypad
Digital and Analog
256 channels, 16 zones, digital and analog
The PD366 operates in digital DMR and in analog, which allows communication to migrate gradually.
• UHF 430 to 470 MHz
• Antenna integrated into the body
• Digital battery life of up to 18 h
Rugged for Everyday Use
IP54 and approximately 160 g
Compact terminal with IP54 against dust and splashes; it is not submersible.
• 106 × 54 × 23 mm and about 160 g
• Monochrome LCD and integrated antenna
• Observe the thermal limits of the BL2009
Why choose the PD366?
The entry-level DMR radio of the PD36X series
- Entry-level DMR radio (digital + analog)
- IP54 ruggedness
- 256 channels and 16 zones
- Noise suppression and built-in speaker
Why buy from ABC Mais Telecom
Programming and service
Fleet configuration
Specialized technical service
Technical support and maintenance conducted by a team specialized in radio communication, with close service in the ABC Paulista.
Anatel approval
Support and SLA
Hytera warranty
Technical Specifications
Technical data for the Hytera PD366 according to the official Hytera Brazil page and the PD36X series catalog.
DMR
Digital + analog
IP54
Dust and splashes
256 channels
16 zones
Integrated antenna
Exclusive design
Detailed data sheet
| Type | DMR portable radio, digital and analog |
| Frequency range | UHF 430 to 470 MHz |
| Channel capacity | 256 |
| Zone capacity | 16 |
| Operating voltage | 3.7 V |
| Battery | BL2009, Li-ion 2000 mAh |
| Battery life in analog | approx. 16 h (5-5-90 cycle, high transmit power) |
| Battery life in digital | approx. 18 h (5-5-90 cycle, high transmit power) |
| Dust and water protection | IP54 |
| Operating temperature | Radio: −30 °C to +60 °C. Battery BL2009: −20 °C to +60 °C discharging and 0 °C to +45 °C charging. |
| Storage temperature | Radio: −40 °C to +85 °C. See battery-specific limits according to period. |
| Dimensions (H × W × D) | 106 × 54 × 23 mm |
| Weight | approx. 160 g |
| Antenna | Integrated into radio body |
| Display | Black and white LCD |
| Keypad | Functional |
| Audio | Noise suppression with built-in speaker |
Features explained
The features of the Hytera PD366 should be read together. The BL2009 battery has 2000 mAh and operating voltage of 3.7 V. In the 5/5/90 cycle and at high transmission power, Hytera publishes approximately 16 hours in analog and 18 hours in digital. Dimensions, battery life and protection are values for the PD366 model, not the entire family. The configuration of channels, zones and contacts must respect the operation planning and applicable documentation.
DMR digital + analog
The Hytera PD366 operates in DMR digital and analog. Dual mode facilitates coexistence with an analog base during a planned migration, but does not replace correct programming of frequency, channel width, color code and other parameters. The capacity of 256 channels and 16 zones allows separating teams, shifts and areas without changing the equipment specification. The manufacturer publishes only the UHF range of 430 to 470 MHz for this version.
IP54 ruggedness
256 channels and 16 zones
The Hytera PD366 offers 256 channels and 16 zones. Channels store communication parameters; zones help group these channels by team, sector or shift. The declared capacity does not create additional coverage and does not guarantee automatic interoperability. To work with an existing network, the radio needs to be programmed with compatible parameters and within the UHF range of 430 to 470 MHz published by the manufacturer.
Digital audio and noise suppression
DMR mode offers digital voice with noise suppression, according to the features published by Hytera for the PD36X series.
Monochrome LCD display + keypad
Monochrome LCD display (B&W) and keypad, which show channel and status and facilitate navigation through 256 channels.
Long-lasting BL2009 battery
BL2009 lithium-ion battery with 2000 mAh. The official page publishes approximate battery life of 16 hours in analog and 18 hours in digital.
Connectivity and features
Digital DMR and analog FM two-way radio in UHF (430-470 MHz), with 256 channels and 16 zones.
Audio and productivity
Practical features: digital and analog DMR operation, with noise suppression and built-in speaker for clear voice.
IP54 protection
Durable construction with IP54 protection, designed for continuous use in the work environment.
Technical documents
The official Hytera PD366 documentation should be the reference for selection and programming. It identifies the model in the PD36X series, publishes the UHF range of 430 to 470 MHz, 256 channels, 16 zones, BL2009 battery of 2000 mAh and IP54 protection. It also separates standard and optional accessories by code. Before ordering, confirm the regional version, power supply and compatibility of each accessory. The Hytera PD366 page informs that images, specifications and accessories may change, so verification should be done with the most recent official list. The Hytera PD366 should not receive battery, charger, cable or headset just by visual similarity.
In the quote, inform quantity, operating range, number of groups, environment and need for programming. These data help verify if the Hytera PD366 meets the project without attributing to the radio range or integration that the manufacturer does not guarantee.
Applications
The Hytera PD366 can be evaluated in operations that prioritize a compact terminal, with monochrome display, functional keypad and digital or analog communication. Retail, hospitality, logistics, facilities and property security are possible application scenarios when the UHF band, projected coverage and programming meet the site. Suitability does not depend only on the segment: number of users, obstacles, noise, shifts and need for integration must be considered in the project.
A simple and robust DMR radio for work
From retail to light industry, the PD366 delivers entry-level DMR radio, clear digital audio and IP54 robustness.
Segments served
Retail and shopping malls
Retail and services: simple and lightweight radio for teams in contact with the customer.
Hospitality and events
Hospitality and events: direct and discreet operation, with clear audio.
Construction and industry
Construction and light industry: IP54 protection should be evaluated according to dust, splashes and real environmental conditions.
Logistics and warehouses
Logistics and warehouses: reliable DMR communication for teams.
Property security
Property security and facilities: entry-level DMR with clear digital audio.
Customer service teams
Customer service teams: clear audio with noise reduction in busy environments.
Usage scenarios
Facilities and services
Facilities and services with simple and reliable DMR communication.
Clear audio in noisy environments
Digital communication for teams in noisy environments, subject to coverage planning and correct system configuration.
Autonomy for the operation
Practical communication, with long-lasting BL2009 battery.
Compatible accessories

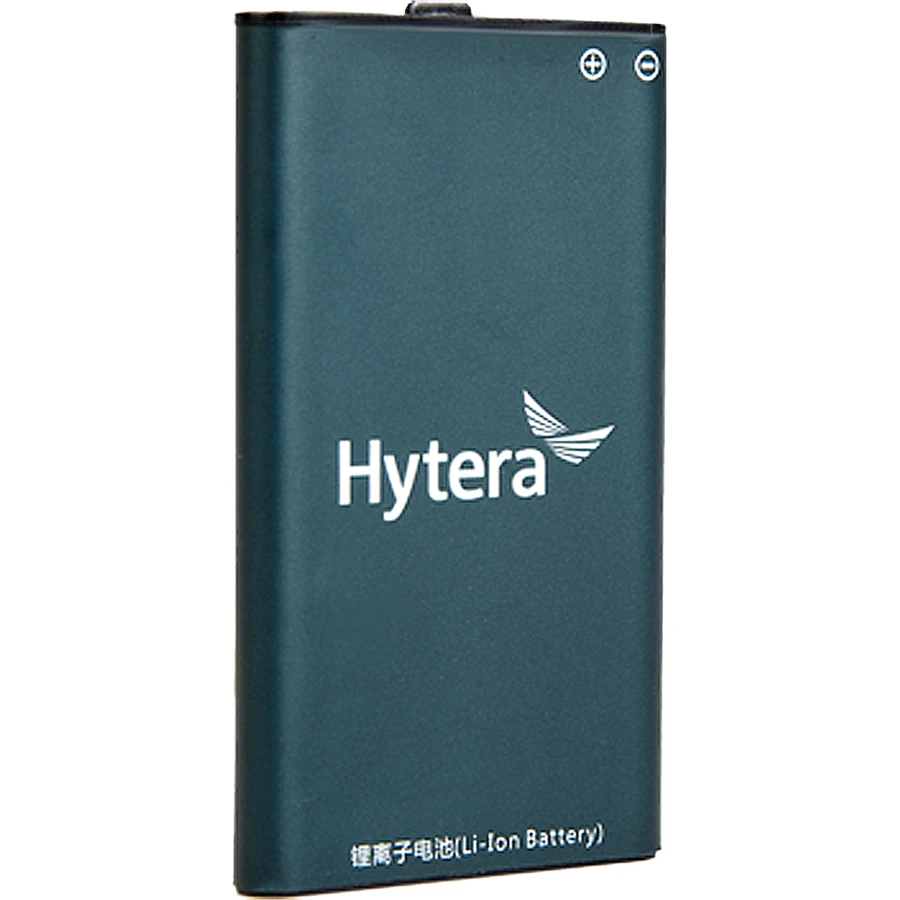

2,000 mAh Li-ion Battery
Standard battery for the PD366. The official indication avoids swapping with visually similar batteries from other series. Code BL2009.

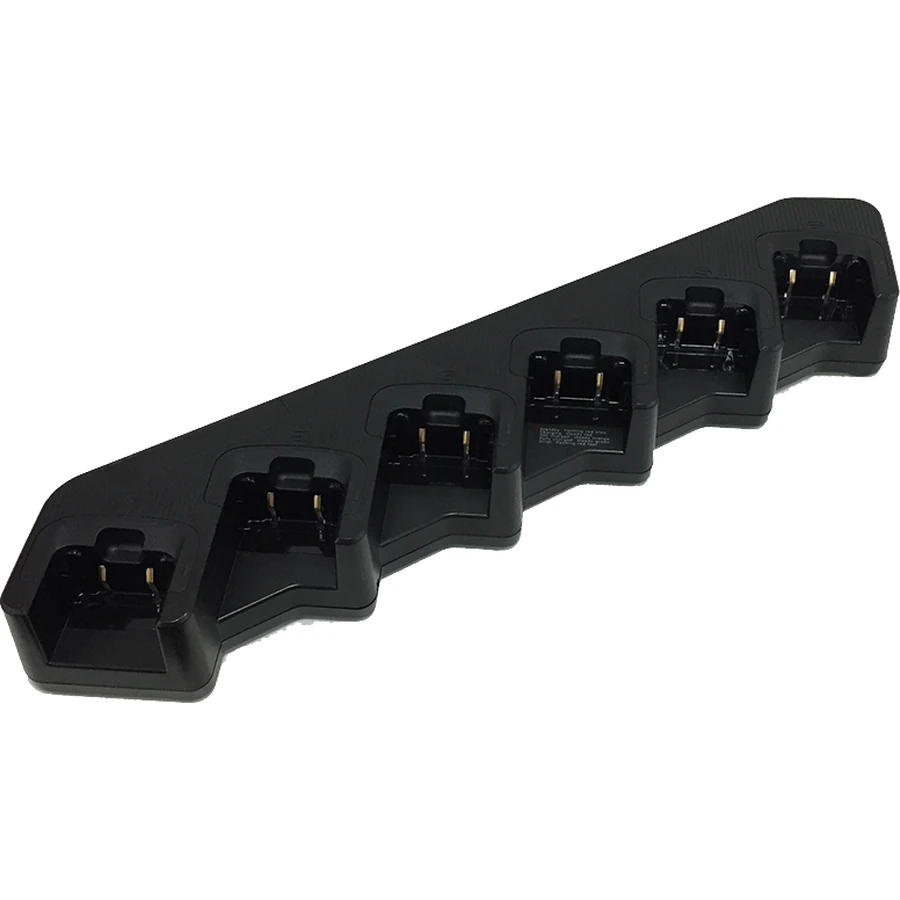

MCL22 Multi-Unit Charger
Centralized charging for PD366, listed in the manufacturer’s optional accessories. Code MCL22.

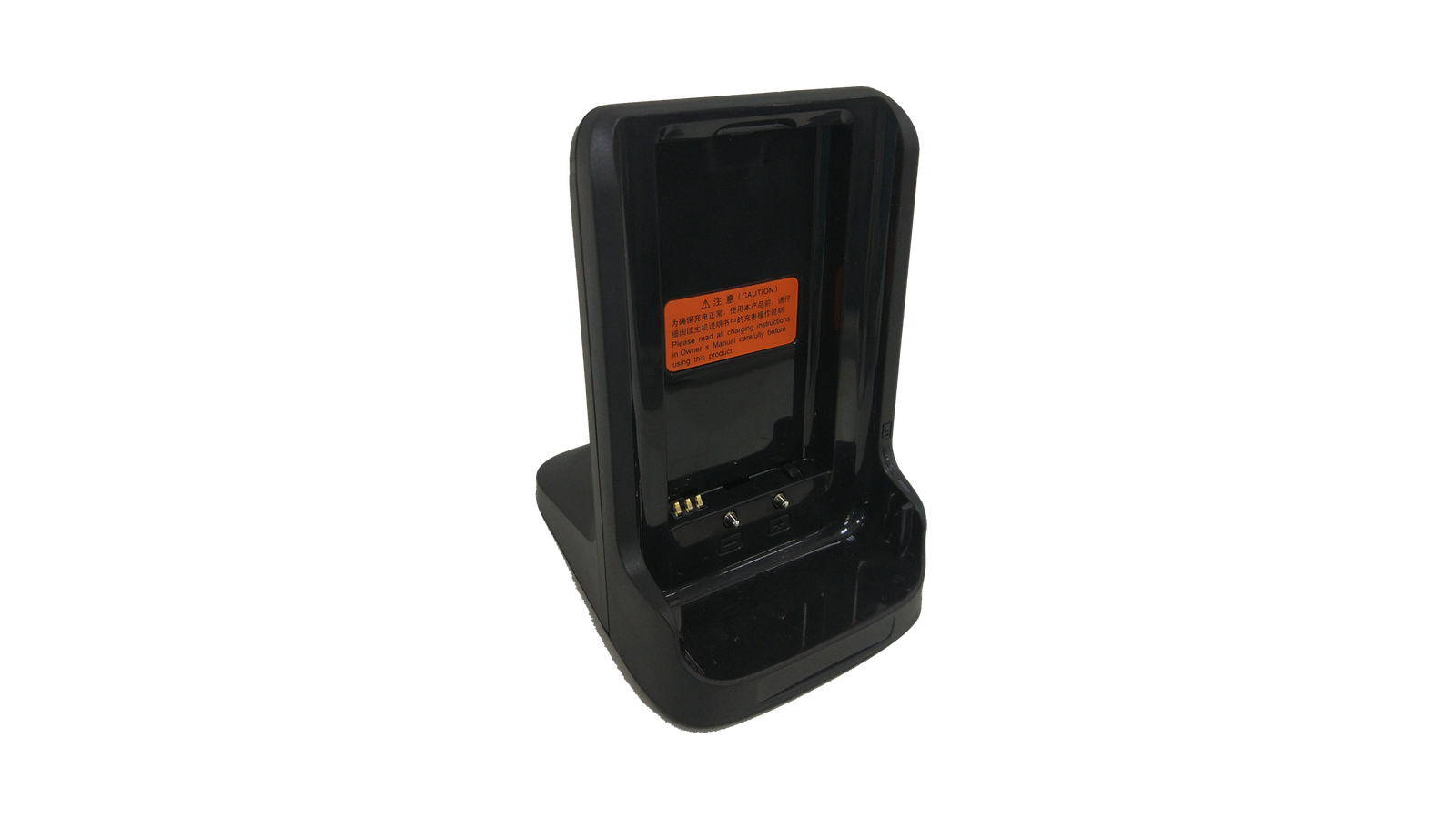

Single-unit charger CH10L24
Optional desktop base for PD366, suitable for organizing individual charging stations. Code CH10L24.
Adjustable receive-only earpiece
Code EH-02. Discreet listening with an adjustable support and swivel speaker. On the PD366, it uses the ACS-01 controller; the earpiece has no microphone or PTT of its own.
C-style earpiece with microphone and PTT
Code EHS16. C-style support and microphone/PTT on the cable. Optional accessory listed for the PD366; it has no VOX or emergency key.
Audio controller with microphone and PTT
Code ACS-01. Controller with microphone/PTT for the PD366 and a 3.5 mm connection for receive-only earpieces such as EH-02. The earpiece is not automatically included.
Illustrative images. Codes according to official Hytera catalog.
Request a quote
Fill in the fields below. ABC replies by email and WhatsApp with pricing on request, lead time and advice for your case. No commitment.
Loading accessories…
Response by email and WhatsApp. No obligation · price on request. We also rent: in rentals, Anatel frequency licensing is already included by ABC Mais Telecom.
Frequently asked questions
Is the PD366 digital or analog?
The PD366 operates in DMR (digital) and analog, allowing gradual migration of communication with clearer digital audio.
How many channels does the PD366 have?
It has 256 channels and 16 zones, enough to organize teams and shifts.
In which frequency bands does the PD366 operate?
The PD366 operates in UHF (430-470 MHz).
What is the battery life of the PD366?
BL2009 2000 mAh battery (Li-ion, 3.7 V). By Hytera, the PD366 operates about 16 h in analog and up to 18 h in digital, at 5-5-90 duty cycle at high power.
Is the PD366 resistant to water and dust?
Yes. The PD366 has IP54 protection (dust and water splashes), suitable for daily use.
Does the PD366 have a display?
Yes. The PD366 has a monochrome LCD display (B&W) and keypad, which show the channel and status.
How is the audio of the PD366?
Noise suppression and the built-in speaker deliver clear voice even in noisy environments.
