Two-way Radio Hytera HP686
Two-way Radio Hytera HP686: professional DMR portable two-way radio from the HP68X series, with 45.7 mm diagonal color display, 1024 channels, AI noise reduction (up to 30 dB), Bluetooth 5.0, GNSS/GPS, IP67 and MIL-STD-810H.
The HP686 is the professional DMR portable two-way radio from Hytera’s HP68X series: 45.7 mm diagonal color display, clear audio with AI noise reduction, 1024 channels, 64 zones, Bluetooth 5.0, GNSS/GPS and IP67 / MIL-STD-810H robustness. Long battery life (up to 30 h with 3000 mAh battery).
Professional DMR
Up to 1024 channels and 64 zones.
Rugged IP67
MIL-STD-810H and 2-meter drop.
AI noise reduction
Reduces up to 30 dB of background noise.
Long battery life
Up to 30 h with 3000 mAh battery.
OVERVIEW

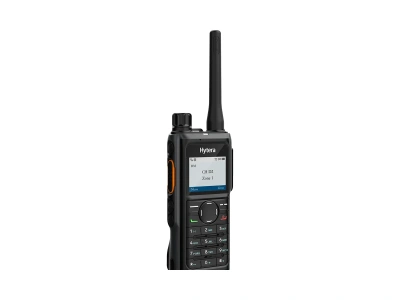

Meet the Two-way Radio Hytera HP686
The Two-way Radio Hytera HP686 is a professional DMR portable from the HP68X series, with 45.7 mm color LCD display, AI noise reduction audio, 1024 channels, 64 zones, optional GNSS and IP67.
- Professional DMR digital radio
- UHF 400 to 527 MHz and VHF 136 to 174 MHz
- 1024 channels and 64 zones
- 45.7 mm diagonal color LCD display and GNSS/GPS
Display and Audio
Color display and clear sound in noise
45.7 mm diagonal color transflective LCD display (160 × 128 px, 65,536 colors) and optimized speaker with artificial intelligence noise cancellation, which reduces background noise by 30 dB.
• AI noise reduction of up to 30 dB
• Water drainage in the speaker cavity
• Bluetooth 5.0 for wireless accessories
• Tactile PTT and 3 programmable keys
IP67 Durability
Manufactured to the MIL-STD-810H standard
IP67 rating and 2-meter drop resistance to withstand everyday wear, from −30 °C to +60 °C for the radio; with the BP2002 battery, observe the discharge limit of −20 °C to +60 °C.
• IP67 water and dust protection
• MIL-STD-810H and 2-meter drop
• 20 h (2000 mAh) or 30 h (3000 mAh) battery
• 280 g with the 2000 mAh battery
Why choose the HP686?
The HP686 delivers professional audio, ruggedness and smart features in a compact radio. For ABC Mais Telecom, it is the right choice for teams that need clear and reliable communication in customer contact.
The top professional DMR radio of the HP68X series
- Professional DMR digital radio
- IP67 and MIL-STD-810H ruggedness
- 1024 channels, 64 zones, with GNSS
- AI noise reduction and Bluetooth 5.0
Why buy from ABC Mais Telecom
Programming and service
Fleet configuration
Specialized technical service
Technical support and maintenance conducted by a team specialized in radio communication, with close service in the ABC Paulista.
Anatel Approval
Support and SLA
Hytera Warranty
Technical Specifications
How to specify the Hytera HP686.The Hytera HP686 is offered in UHF versions from 400 to 527 MHz or VHF from 136 to 174 MHz. The band must be chosen in the radio frequency design. The 1024 channels and 64 zones of the Hytera HP686 organize sectors, shifts and groups, while the 45.7 mm color LCD display features 160 × 128 pixels and 65,536 colors.
Battery and dimensions.With the 2000 mAh BP2002, the Hytera HP686 measures 122 × 55 × 31.5 mm, weighs 280 g and achieves 20 hours with GNSS off or 16 hours with GNSS on in the 5/5/90 cycle at high power. The optional 3000 mAh smart battery increases the depth to 39 mm, the weight to 317 g and the published autonomy to 30 or 24 hours.
Protection and connectivity.The Hytera HP686 has IP67, MIL-STD-810H, 2-meter drop resistance and Bluetooth 5.0. GNSS services depend on the version and configuration. In the Hytera HP686 quote, confirm band, battery, optional features and accessories by code.
Accessory compatibility.The Hytera HP686 uses the BP2002 battery, the CH10L30 charger, the BC48 clip and antennas defined by the radio band. Also appearing on the official list are options such as the SM26N1 microphone, the SM27W2 wireless microphone and the EHW08 earpiece. A similar code does not replace checking the manufacturer’s list.
DMR
Professional digital radio
IP67
MIL-STD-810H
1024 channels
64 zones
Bluetooth 5.0
Wireless audio
Detailed data sheet
| Type | professional DMR portable two-way radio |
| Frequency range | UHF 400 to 527 MHz / VHF 136 to 174 MHz |
| Channel capacity | 1024 |
| Zone capacity | 64 |
| Display | 45.7 mm diagonal transflective color LCD (160 × 128 px, 65,536 colors) |
| Controls | Tactile PTT and 3 programmable keys |
| Operating voltage | 7.7 V (nominal) |
| Standard battery | 2000 mAh Li-polymer (BP2002) |
| Optional battery | 3000 mAh smart Li-polymer |
| Battery life (2000 mAh) | 20 h with GNSS off and 16 h with GNSS on (5/5/90 cycle, high transmit power) |
| Battery life (3000 mAh) | 30 h with GNSS off and 24 h with GNSS on (5/5/90 cycle, high transmit power) |
| Noise reduction | by artificial intelligence, up to 30 dB |
| Wireless connectivity | Bluetooth 5.0 |
| Location | GNSS/GPS |
| Water and dust protection | IP67 |
| Military standard | MIL-STD-810H |
| Drop resistance | 2 meters |
| Operating temperature | −30 °C to +60 °C for the radio; with BP2002 battery, respect the discharge limit of −20 °C to +60 °C |
| Storage temperature | -40 °C to +85 °C |
| Dimensions (2000 mAh) | 122 × 55 × 31.5 mm (H × W × D) |
| Dimensions (3000 mAh) | 122 × 55 × 39 mm (H × W × D) |
| Weight (2000 mAh) | 280 g |
| Weight (3000 mAh) | 317 g |
Features explained
Each HP686 feature has a practical effect on your team’s daily routine. See what each characteristic delivers.
Professional DMR
Professional DMR portable two-way radio, with clear digital audio and improved receiver sensitivity for extended coverage.
IP67 and MIL-STD-810H ruggedness
The Hytera HP686 follows the MIL-STD-810H standard, has an IP67 rating and 2-meter drop resistance.
1024 channels and 64 zones
The Hytera HP686 offers 1024 channels and 64 zones to organize teams, departments and shifts.
AI noise reduction (up to 30 dB)
Artificial intelligence noise reduction of up to 30 dB, for clear communication in noisy environments.
Bluetooth 5.0 and wireless audio
Long-lasting battery
Long-lasting battery: up to 20 h with 2000 mAh and up to 30 h with the optional 3000 mAh battery.
Connectivity and features
Professional DMR digital radio in UHF (400 to 527 MHz) or VHF (136 to 174 MHz), with 1024 channels and 64 zones.
Audio and productivity
Smart features: AI noise reduction (up to 30 dB), Bluetooth 5.0, GNSS/GPS and improved receiver sensitivity for greater coverage.
Certified durability
Durable construction with IP67 sealing and MIL-STD-810H compliance, designed for continuous use.
Technical documents
Consult the official Hytera HP686 (HP6 series) documentation with ABC Mais Telecom.
Official sources and technical reading for the HP686
Official Hytera HP686 pageManufacturer source
Official HP6 Series brochureManufacturer source
Official H Series catalogManufacturer source
How to verify the HP686:the HP686 is the HP68X variant with color display and full keypad. The Brazilian page publishes 1,024 channels, 64 zones, and VHF versions from 136 to 174 MHz or UHF from 400 to 527 MHz. The unit code confirms the physical band.
Power and GNSS:with the 2,000 mAh BP2002 battery, the HP686 publishes 20 hours with GNSS off and 16 hours with GNSS on in the 5/5/90 cycle. The 3,000 mAh option publishes 30 and 24 hours. Effective autonomy varies with power, transmission, coverage, temperature, and battery condition.
Interface and environment:the HP686 has a 45.7 mm color display, full keypad, IP67, operation from −30 °C to +60 °C for the radio; with the BP2002 battery, respect the discharge limit of −20 °C to +60 °C and 2-meter drop resistance. Before quoting the HP686, confirm battery, charger, antenna, audio feature, and accessory by official H Series code.
HP686 configuration:1,024 channels and 64 zones offer ample organization, but do not replace a programming plan. The HP686 must receive channels, groups, contacts, and permissions consistent with the existing network; coverage and interoperability depend on the design, not just the radio.
Applications
The Hytera HP686 Two-Way Radio serves teams that need clear, compact, and reliable communication in customer contact.
A compact and professional DMR radio for everyday use
From retail to logistics, the HP686 delivers professional DMR digital radio, clear audio, and IP67 robustness.
Segments served
Retail and shopping malls
Retail and shopping malls: compact and lightweight radio for teams in customer contact, with clear audio.
Hospitality and events
Hospitality and events: discretion, Bluetooth 5.0 for wireless headsets, and long battery life.
Construction and industry
Construction and industry: IP67 robustness, MIL-STD-810H, and 2 m drop for harsh environments.
Logistics and warehouses
Logistics and warehouses: 1024 channels and 64 zones to organize large operations. The GNSS feature depends on the version and configuration.
Property security
Property security and facilities: professional DMR digital radio with extended battery life.
Customer service teams
Customer service teams: clear audio and AI noise reduction for busy environments.
Use scenarios
Facilities and services
Facilities and services with reliable DMR communication and wireless accessories.
Clear audio in noisy environments
Clear audio even in noisy environments, thanks to AI noise reduction.
Extended coverage
Extended coverage with improved receiver sensitivity.
See this application by segment:
Compatible accessories
Official Hytera accessories listed by the manufacturer for the HP686. ABC supplies original batteries, chargers, antennas, microphones and earpieces, with part codes.
2,000 mAh Li-poly battery
Standard slim-profile battery for HP606/HP686. The declared protection does not extend the rating of the radio-accessory set. Part code BP2002.
Individual smart charger
Single-position base for organized recharging. Use the specified power supply, without assuming compatibility with any 12-volt source. Part code CH10L30.
UHF 400 to 470 MHz antenna
Antenna for the UHF version in the published band; similar fitting alone does not establish VHF compatibility. Code AN0435W09.
IP67 remote speaker microphone
PTT and audio near the shoulder for operating with the terminal attached to the belt. Do not replace with the two-pin SM26M1. Part code SM26N1.
Wireless speaker microphone
Wireless remote audio listed by the manufacturer; requires compatible radio version, pairing and configuration. Part code SM27W2.
EHW08 wireless earpiece
Earpiece for listening and communication without cable, conditioned on Bluetooth capability and pairing of the terminal version. Part code EHW08.
Spring belt clip
Rear spring attachment for carrying the radio. Confirm installation and retention on the unit actually supplied. Part code BC48.
Nylon hand strap
Wrist retention during movement. It is not a safety lanyard against falls of persons nor does it replace proper radio attachment. Part code RO03.
Wireless PTT
Wireless PTT (POA121). Button to command transmission remotely; it is not a headset or microphone. Code POA121.
Official images of the accessories and codes according to the compatibility list published by Hytera.
Request a quote
Fill in the fields below. ABC replies by email and WhatsApp with pricing on request, lead time and advice for your case. No commitment.
Loading accessories…
Response by email and WhatsApp. No obligation · price on request. We also rent: in rentals, Anatel frequency licensing is already included by ABC Mais Telecom.
Frequently asked questions
Is the HP686 a digital radio?
Yes. The HP686 is a professional DMR portable two-way radio, with 1024 channels, 64 zones and clear digital audio.
How many channels does the HP686 have?
It has 1024 channels and 64 zones, to organize large operations and multiple teams.
In which bands does the HP686 operate?
The HP686 operates in UHF (400 to 527 MHz) or VHF (136 to 174 MHz), depending on the version.
What is the battery life of the HP686?
Up to 20 h with the standard 2000 mAh battery and up to 30 h with the optional 3000 mAh battery (5-5-90 cycle, GNSS off).
Is the HP686 resistant to water and dust?
Yes. The HP686 has IP67 protection against water and dust, MIL-STD-810H compliance and resistance to drops from 2 meters.
Does the HP686 have GPS?
The HP686 offers GNSS/GPS feature depending on the version and configuration purchased. Confirm this option in the project.
What is the AI noise reduction of the HP686?
It is a feature that uses artificial intelligence to reduce ambient noise by up to 30 dB, making the voice clearer in noisy places.
