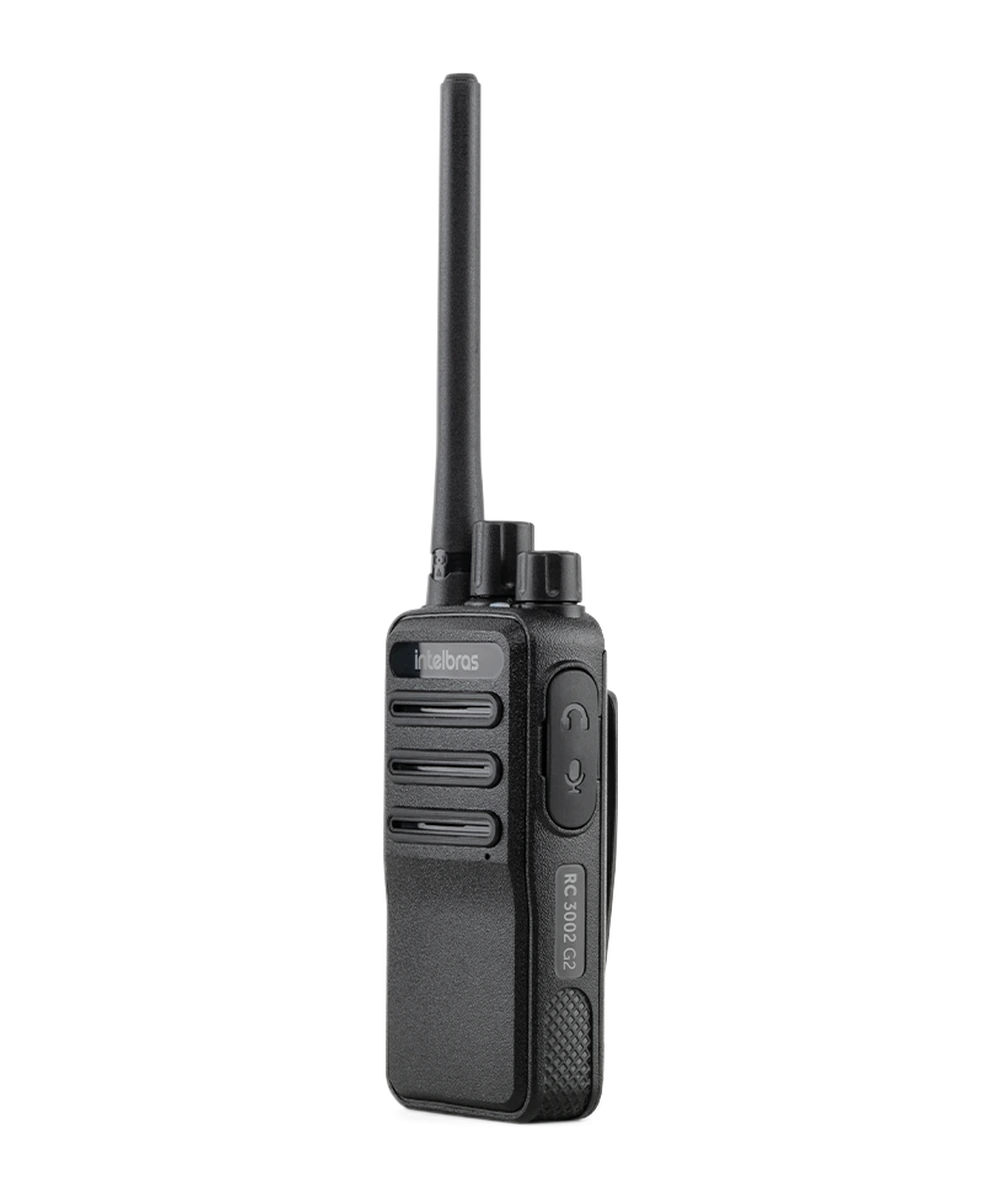

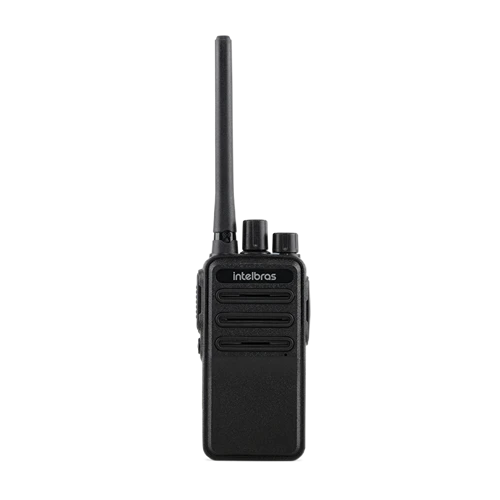

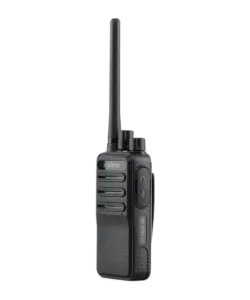

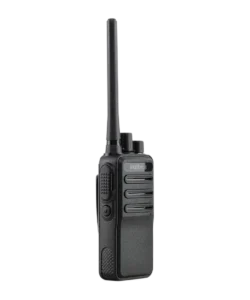

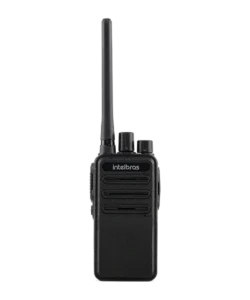

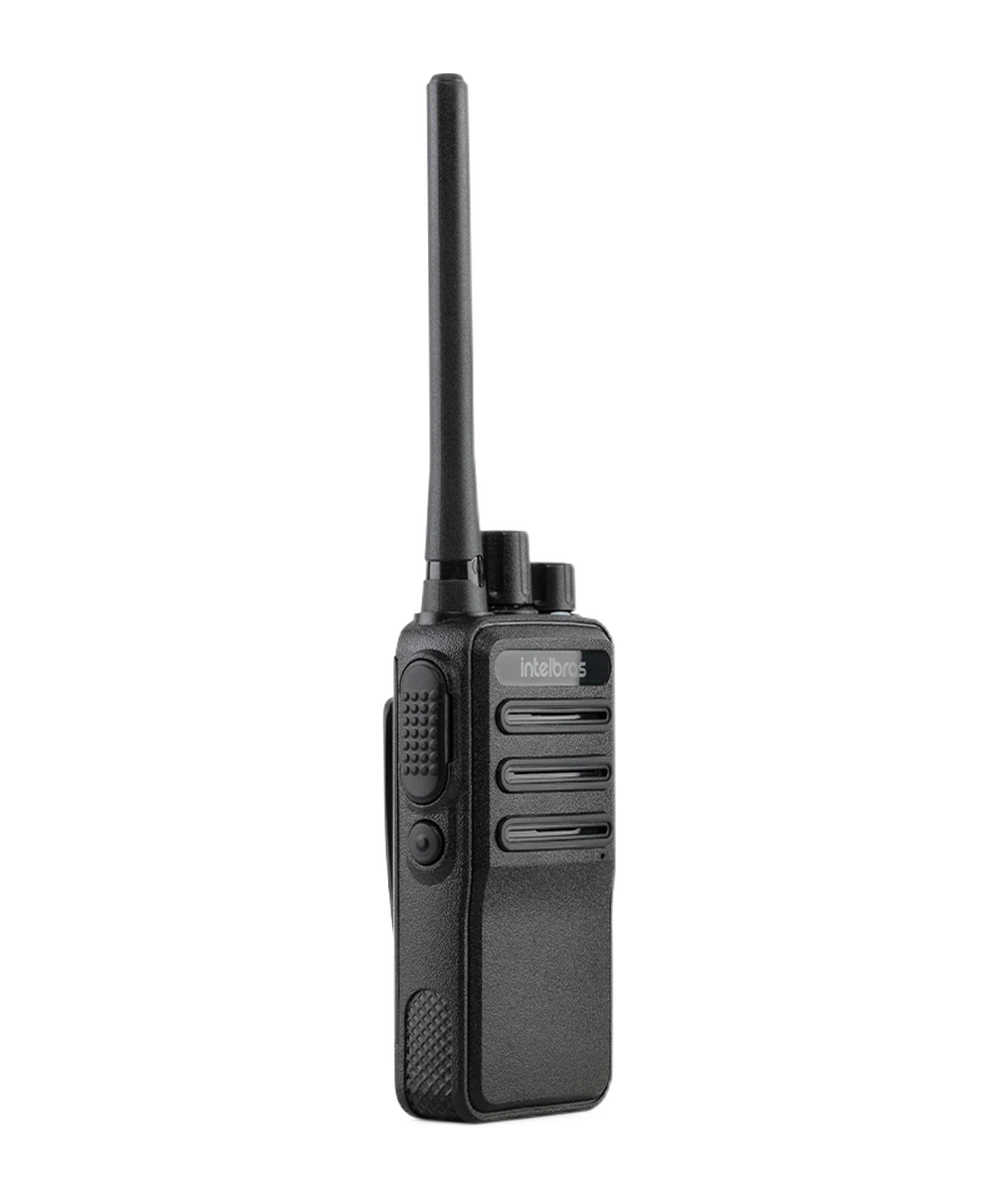

Intelbras RC 3002 G2 Radio
Intelbras RC 3002 G2 Radio: entry-level analog two-way radio, with 16 UHF channels, 500 mW power, up to 12 h battery life and sold in a kit with 2 radios.
16 channels
Analog UHF, with direct selection on the radio.
500 mW
Transmission power for short distances.

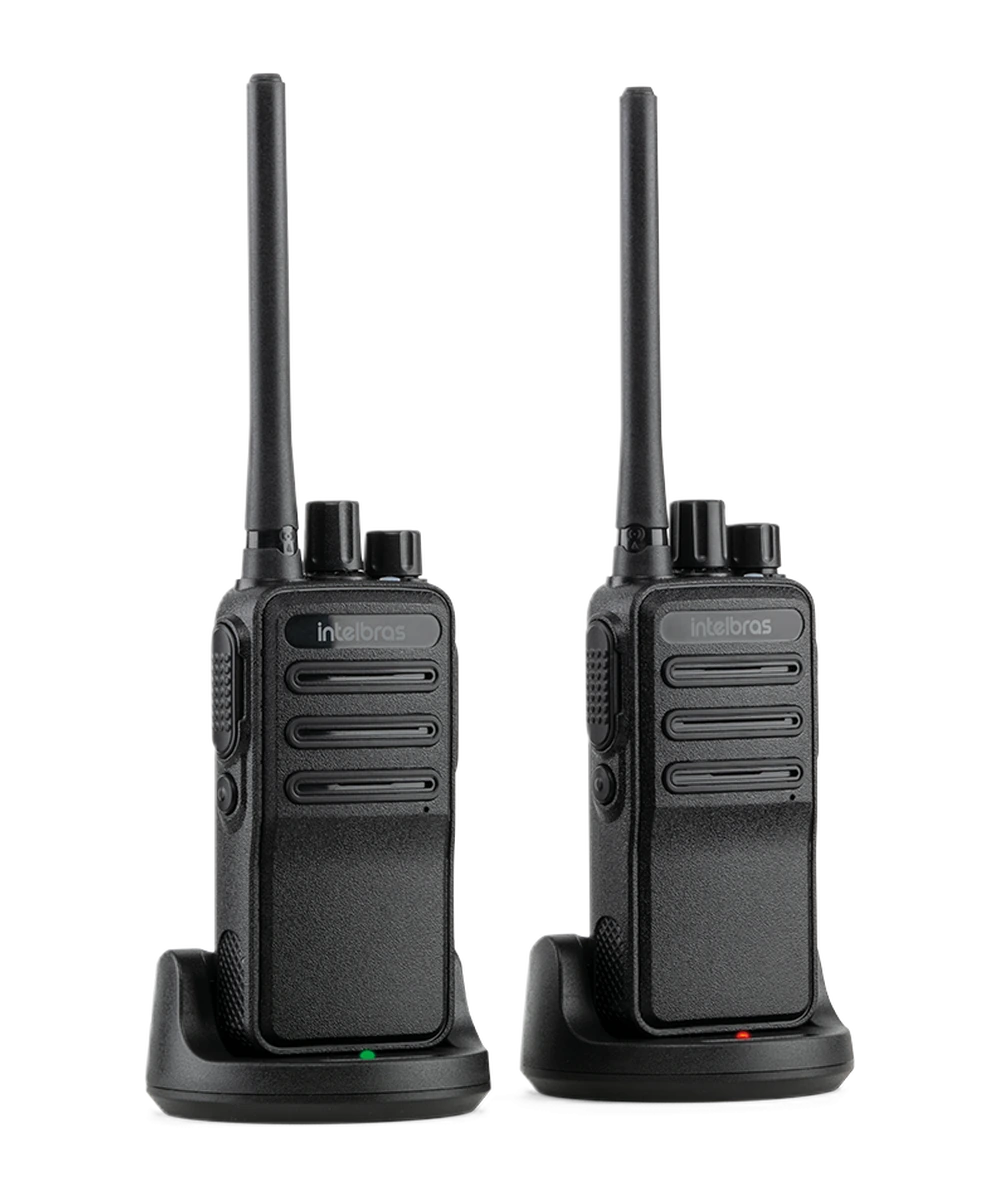

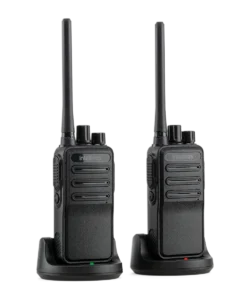

Kit with 2 radios
Complete pair, with battery and base for each one.
Up to 12 h
Battery life with the 1,000 mAh battery.
OVERVIEW

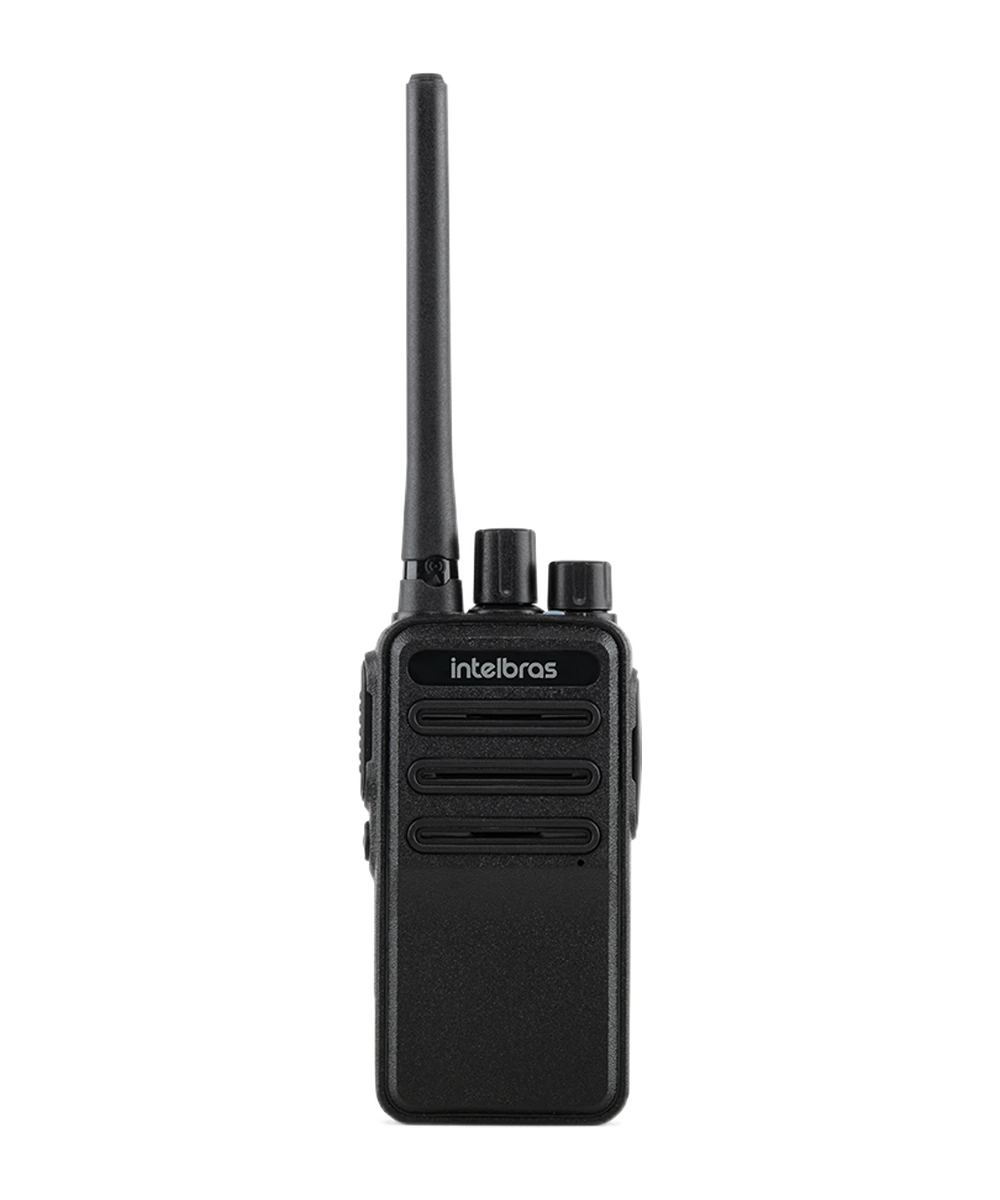

Meet the Intelbras RC 3002 G2 Radio
The Intelbras RC 3002 G2 is an entry-level analog two-way radio for teams that need immediate communication within the same area: a store, small construction site, condominium, gatehouse or event, without depending on a mobile operator’s signal.
Analog communication
16 channels and 500 mW
Operates on analog UHF.
• 16 channels
• PTT, VOX and monitoring
• Compatible with analog radios on the same band
Kit and battery life
Two radios and up to 12 h
The kit includes two radios and power items.
• 1,000 mAh lithium battery
• Recharge in 3.5 h
• Weight of 160 g per radio
Why choose the RC 3002 G2?
Intelbras' entry-level two-way radio
- Intelbras entry-level analog radio
- 16 channels, 500 mW and up to 12 h battery life
- Kit with 2 radios, batteries and charging bases
- Usage guidance and service with ABC Mais Telecom
Why buy from ABC Mais Telecom
Buying the radio is only part of it. What keeps communication working is the service behind it: usage guidance, compatible accessories, battery replacement, and specialized technical service from ABC Mais Telecom.
Communication and channels
Controls and operation
Battery and recharging
Anatel Approval
Intended use
Manufacturer warranty
Technical Specifications
Technical data for the Intelbras RC 3002 G2 two-way radio according to the official Intelbras data sheet (V25.1).
16 channels
Analog UHF
500 mW
Output power
Kit with 2
Radios per box
Up to 12 h
Battery life
Detailed data sheet
| Feature | Official information |
|---|---|
| Type | UHF analog two-way radio |
| Channels | 16 |
| Frequency range | 462.5625 to 462.7125 MHz and 467.5625 to 467.7125 MHz |
| Power | 500 mW |
| Battery | Lithium AB 3002 G2, 1,000 mAh |
| Battery life | Up to 12 h |
| Recharge | 3.5 h via micro USB-C |
| Weight | 160 g with battery |
| Temperature | 0 °C to 40 °C |
| Anatel approval | 06163-20-00160 |
| Warranty | 1 year |
Features explained
Each feature of the RC 3002 G2 has a practical effect on operation. See what each one represents in day-to-day use.
16 channels
You can separate teams or shifts into different channels and prevent everyone from hearing everything all the time.
VOX: hands-free talking
Transmission is activated by voice. Useful for those with their hands occupied carrying, driving a cart, or operating a tool.
Monitor button
Opens the channel audio to listen to weak or distant conversations before transmitting, reducing the chance of talking over someone.
LED indicator
Red when the radio transmits and green when it receives: the operator checks on the device itself whether the message went out.
Up to 12 h battery life
Kit with 2 radios
Communication and features
Analog radio with 16 UHF channels, PTT, VOX, monitoring and LED indicator. Immediate communication, no carrier monthly fee.
Use and operation
16-channel selector, volume control, PTT and side monitoring button, with wrist strap and belt clip included. Direct commands, to use without training.
Battery and power
AB 3002 G2 1,000 mAh lithium battery with silver contact, recharges in 3.5 h on the independent base and automatic bivolt power supply 110 to 220 Vac. Operating temperature from 0 °C to 40 °C.
Technical documents
Consult the official datasheet of the Intelbras RC 3002 G2 Radio with ABC Mais Telecom: complete specifications, directly from Intelbras.
Applications
The Intelbras RC 3002 G2 Radio serves small teams that need immediate communication within the same area, where cell phones are slow or too expensive for everyday use.
Simple communication for small teams
From gatehouses and condominiums to stores, small construction sites and events, the RC 3002 G2 delivers 16 UHF channels, up to 12 h of battery life and a pair of radios ready for use.
Segments served
Gatehouse and janitorial services
Gatehouse, internal rounds and janitorial services talking instantly, without depending on carrier signal or monthly fees.
Condominiums
Maintenance, cleaning and condominium administration on separate channels within the same area.
Small construction sites
Direct communication between foreman, surveyor and team on small sites, where distances are short.
Stores and supermarkets
Stock, checkout and sales floor aligned without the attendant needing to leave the post to notify something.
Events and recreation
Setup, reception and support teams talking during the event, with battery for the entire shift.
Hospitality and restaurants
Governance, kitchen and reception coordinated with discreet and immediate communication.
Usage scenarios
Company's first radio fleet
Kit with 2 ready-to-use radios: it is the most direct way to get the team off the cell phone and out of the messaging group.
Full shift without recharging
Up to 12 h of autonomy with the 1,000 mAh battery and recharge in 3.5 h on the bases, which are independent.
Hands busy in the field
Compatible accessories
Original Intelbras accessories for the RC 3002 G2. Talk to the ABC Mais Telecom team for the ideal configuration of your operation.

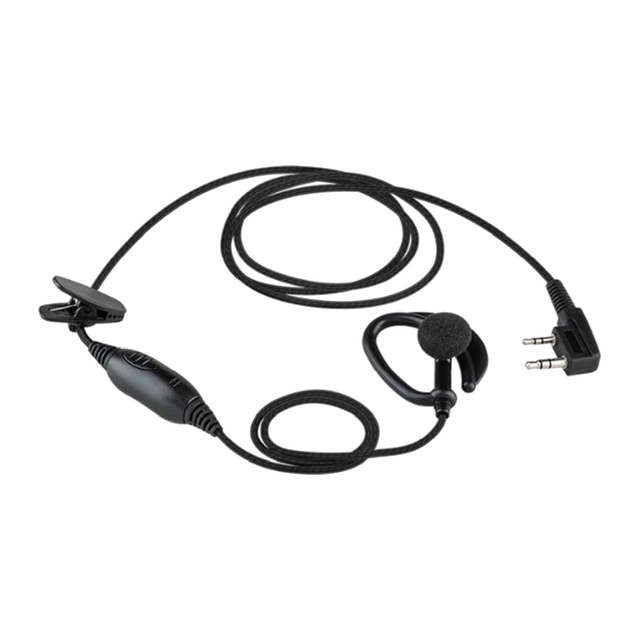

In-ear headset with PTT
Type C earpiece for the RC 3002 G2/RPA 6001 analog line, with microphone integrated into the PTT and fixation clip. The official RC 3002 G2 support expressly lists this accessory. Code AF 6000 C.

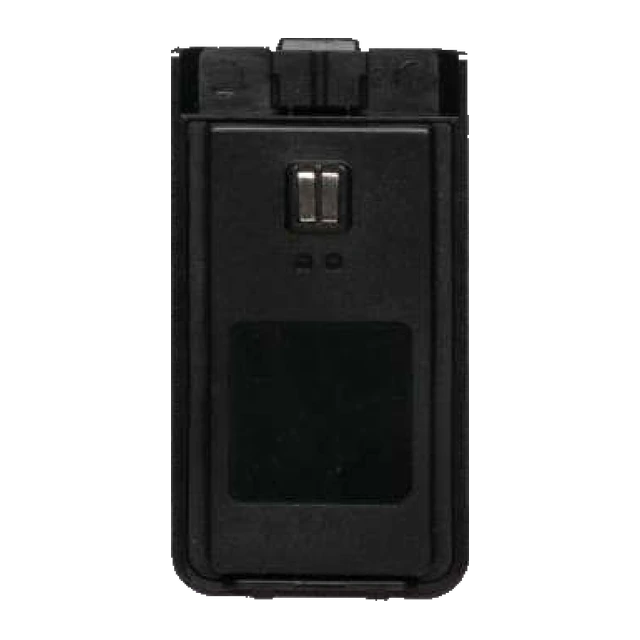

Replacement lithium battery
Battery specific to RC 3002 G2, rechargeable separately on the base. Versions manufactured after March 2024 use USB-C; earlier batches use USB-B, according to the official data sheet. Code AB 3002 G2.
Over-ear headset with PTT
Type D headset for RC 3002 G2 and RPA 6001, with microphone integrated into the PTT and metal clip. Allows talking and listening with the radio attached to the body. Code AF 6000 D.
Illustrative images. Codes according to official Intelbras catalog.
Request a quote
Fill in the fields below. ABC replies by email and WhatsApp with pricing on request, lead time and advice for your case. No commitment.
Loading accessories…
Response by email and WhatsApp. No obligation · price on request. We also rent: in rentals, Anatel frequency licensing is already included by ABC Mais Telecom.
Frequently asked questions
What is the Intelbras RC 3002 G2 two-way radio?
RC 3002 G2 is an analog UHF portable radio with PTT operation and a removable lithium battery.
How many channels does the RC 3002 G2 have?
There are 16 channels, without subchannels, according to the RC 3002 G2 data sheet.
Is the RC 3002 G2 digital or analog?
It is analog UHF, not DMR. Another radio must operate on the same frequency with a compatible channel configuration.
What is the battery life of the RC 3002 G2?
The data sheet states up to 12 hours at a duty cycle of 5% transmission, 5% reception and 90% standby, with the AB 3002 G2 battery. Use and battery condition affect battery life.
What is the power and frequency range of the RC 3002 G2?
The documentation specifies power up to 500 mW and bands of 462.5625-462.7125 MHz and 467.5625-467.7125 MHz; check the actual channels in the manual’s table.
What is the range of the RC 3002 G2?
Obstacles, interference and battery charge affect RC 3002 G2 range. The distances published by the manufacturer assume ideal conditions; validate the actual route.
Is the RC 3002 G2 resistant to water and dust?
The consulted sources do not state an IP rating for RC 3002 G2. Do not treat it as waterproof or regard that absence of information as protection certification.
What comes in the box of the RC 3002 G2?
The documented kit contains two radios, antennas, bases, AB 3002 G2 batteries, straps and belt clips, plus a manual. An earpiece is not included.
Is the RC 3002 G2 approved by Anatel?
The data sheet lists Anatel approval 06163-20-00160. Compare it with the unit’s label and check the current status in Anatel’s system; this does not remove the need to verify the model.
How is the RC 3002 G2 charged?
Use the supplied base according to the manual. Units manufactured after March 2024 have USB-C; earlier versions use USB-B. Check the unit revision before choosing the cable.
